MS-C2867-X20TPC 20X PTZ BULLET 2MP

No Disponible

MS-C2867-X20TPC 20X PTZ BULLET 2MP

880,25 €

Producto Disponible (Stock en camino) - (Imp. Incluidos)

Marca: Milesight  •  Peso: 3 Kg



Cámara PTZ Bullet AI 20X PTZ, sensor 1/2"

2MP · AI · Zoom óptico 20X · 3 en 1 Super WDR Pro · 0.002Lux Ultra Low-light · IP66 · Seguimiento automático PTZ · Posicionamiento 3D · Detección de movimiento PTZ · Hasta 100 fps · Lente 6.4~128mm · IR 180mts

  • Análisis de video con IA.
  • Conteo de personas
  • Detección de caras
  • Última tecnología LED IR
  • Diseño único para una fácil instalación
  • Soporte SIP/VoIP
  • LED blanco inteligente
  • Seguimiento automático de PTZ
  • Posicionamiento 3D
  • Desempañado Integral

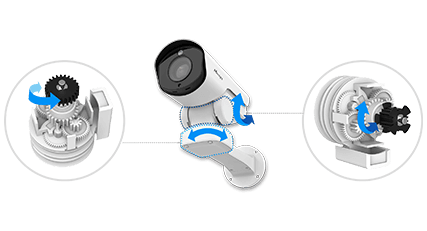

Motor PTZ de nueva generación

Se adopta un motor de nueva generación con un sofisticado diseño de transmisión por engranajes planetarios para garantizar un giro constante, lo que garantiza su rendimiento robusto y proporciona una operación de giro e inclinación confiable.

CameraName2MP AI 20X PTZ Bullet Plus Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
WDR140dB Super WDR Pro
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
LensFocal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/2000mm (Wide/Tele)
ApertureF1.6∼F4.0
Iris ControlAuto
PTZPan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IRIrradiation DistanceUp to 180m
VideoMax. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Web AccessSupport IE/Firefox/Chrome/Safari Browser
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face DetectionDetect and capture faces, get real-time snapshots
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
